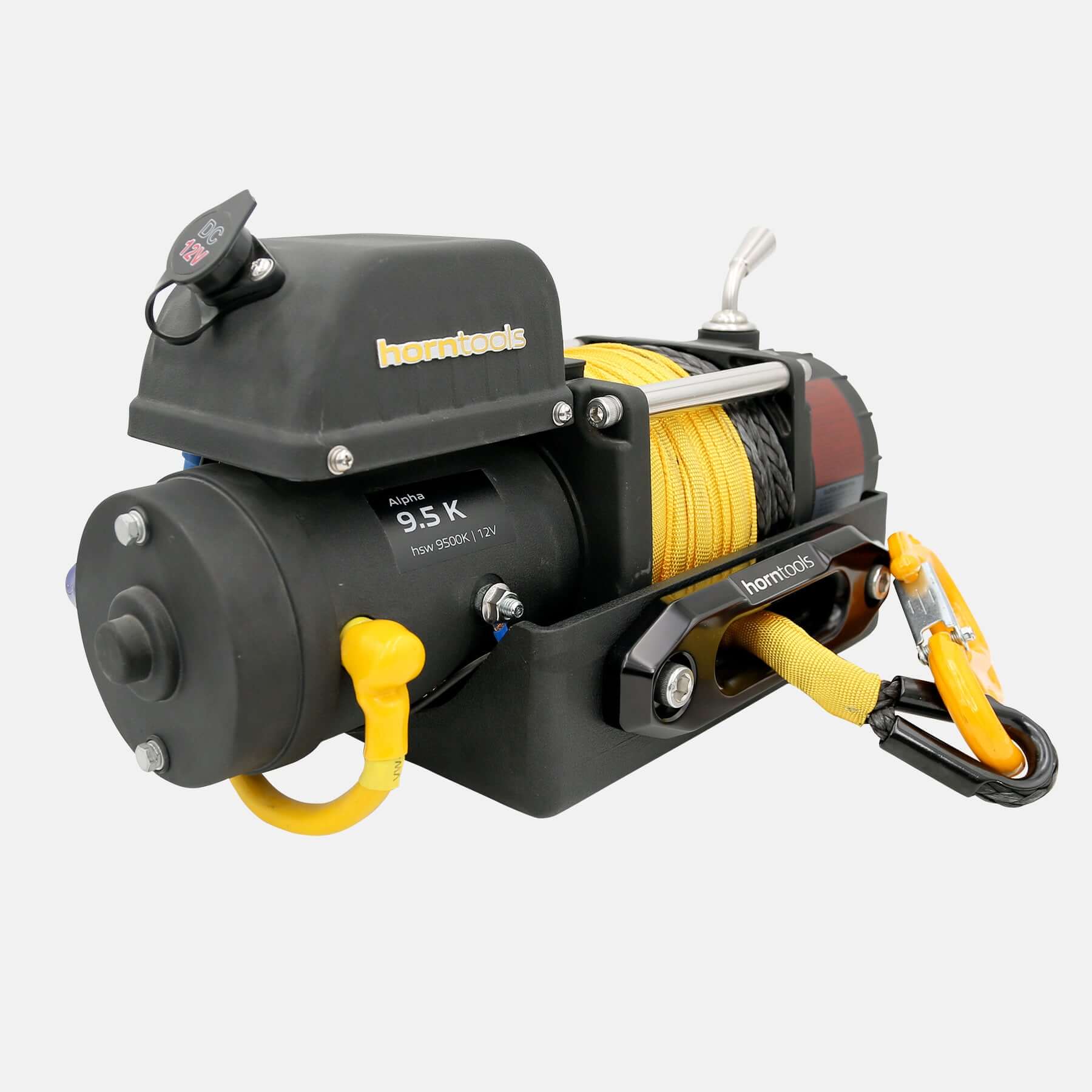

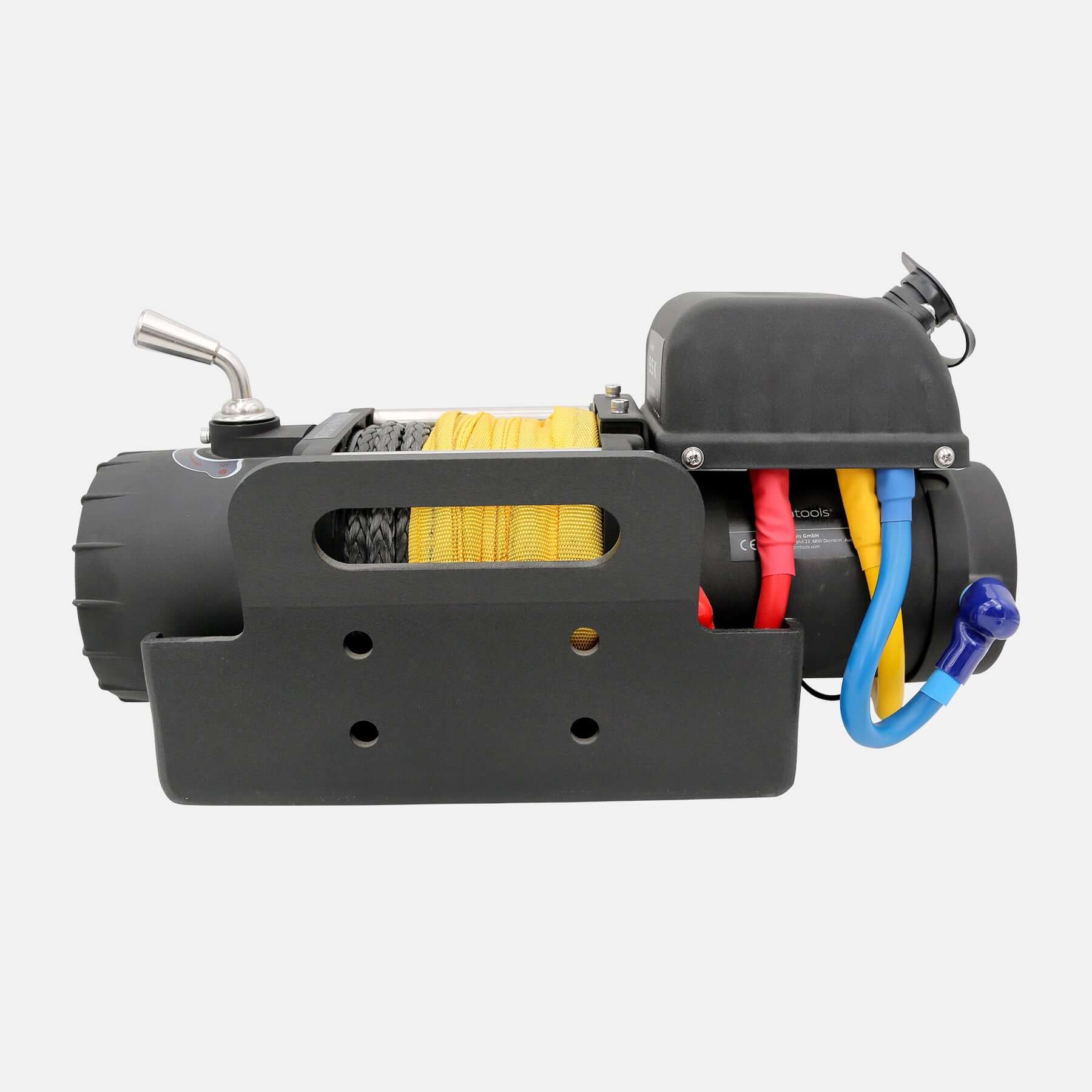

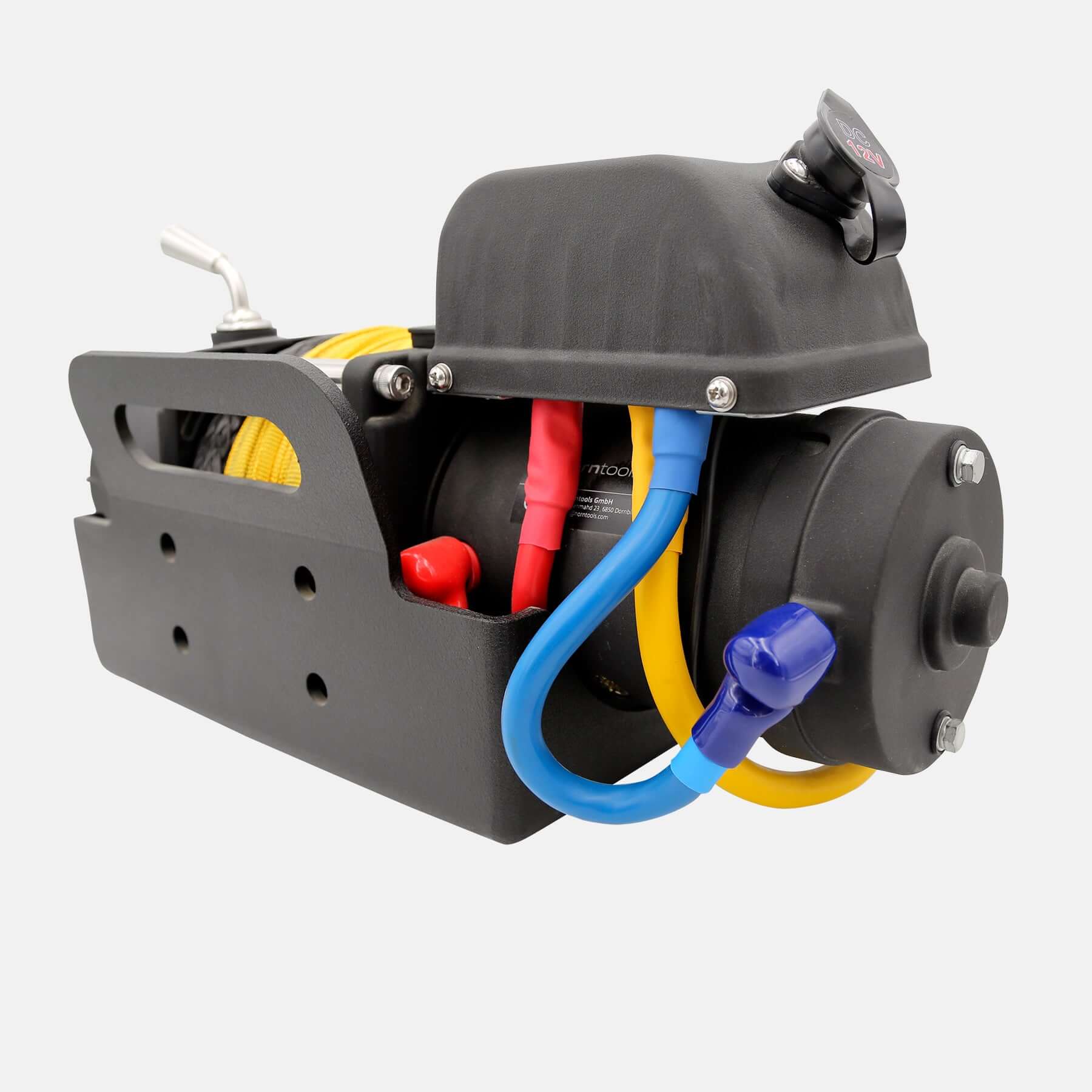

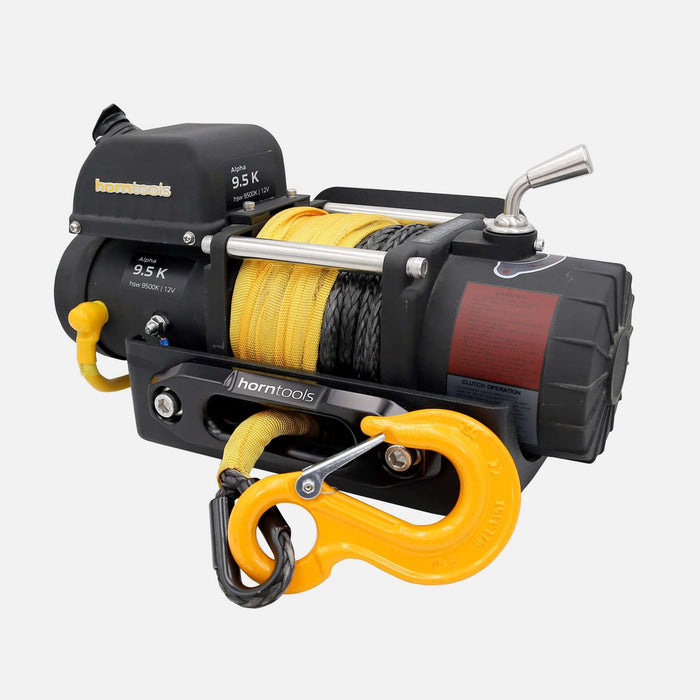

Electric Winch Alpha 4.3 tons Compact

The horntools Alpha 9.5 Compact combines 4.3 tons of pulling capacity with particularly compact dimensions. It was specially developed for applications where only little space is available for installing a powerful winch – for example in trailer construction, as a rear or hunting winch, and on tow vehicles.

4.3 tons of pulling capacity with especially low space requirements

The great strength of the Alpha 9.5 Compact is the ratio of high pulling capacity to compact design. This allows it to be used even where a classic vehicle winch is difficult to integrate due to its dimensions.

The removable control unit offers additional flexibility during installation and can be positioned on the vehicle or superstructure to suit the respective application.

Versatile applications

The Alpha 9.5 Compact is particularly suitable for applications where high pulling capacity meets limited installation space.

Typical areas of use include:

• Use on trailers
• Loading vehicles onto trailers
• Use as a rear winch
• Integration into rear winch systems
• Hunting and forestry work
• Use on pick-up truck beds
• Use on tow vehicles with a tow bracket
• Recovery and pulling tasks in work operations

A suitable carrier or mounting kit is required for the respective installation.

Compact design for flexible installation solutions

Despite its compact dimensions, the Alpha 9.5 Compact offers a pulling capacity of 4.3 tons. The IP67-sealed motor, the reinforced rope drum and the internal drum brake with three brake shoes ensure a robust construction.

The removable control unit makes integration easier for individual installation solutions. In addition to the included corded remote control, the winch can also be extended with a wireless remote control.

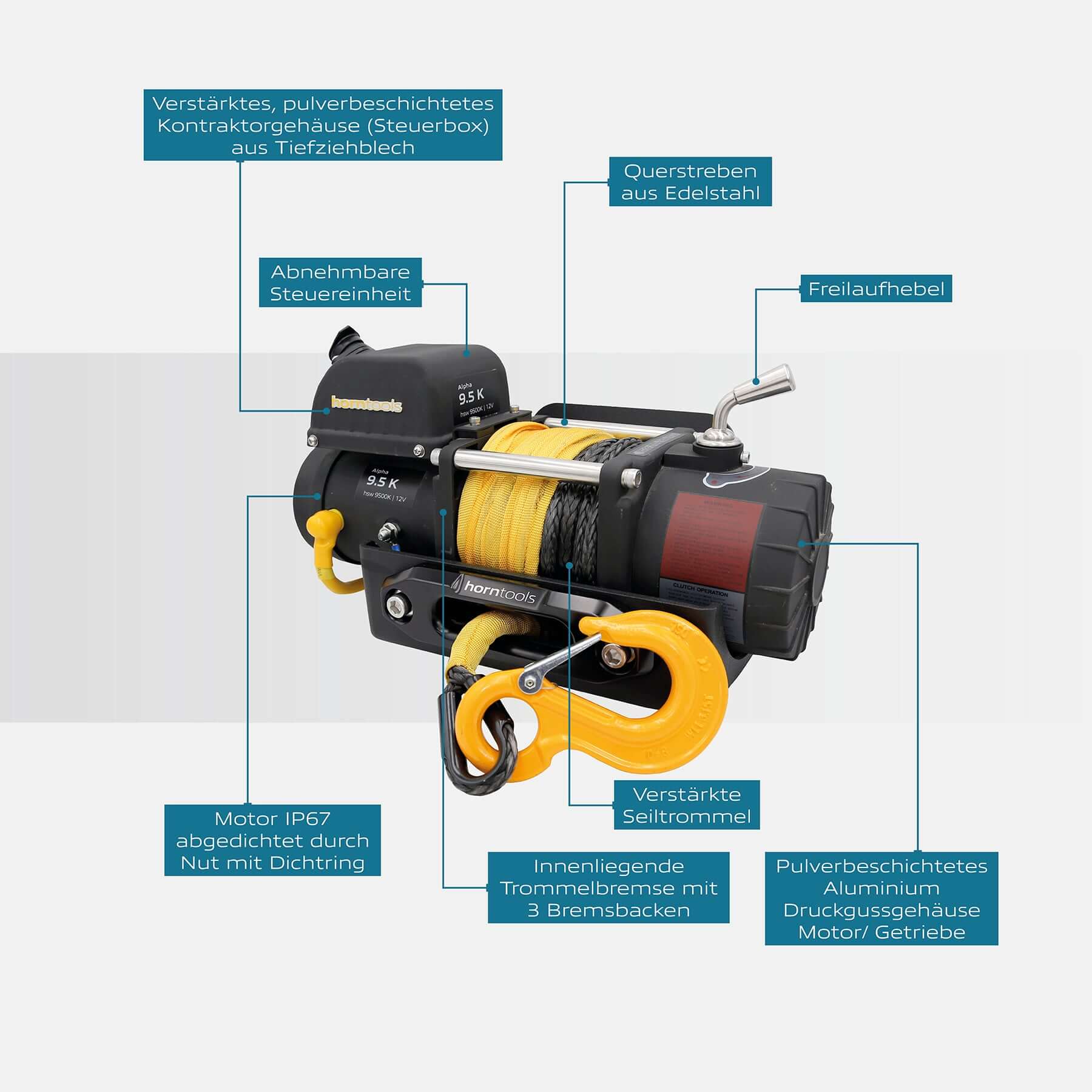

Features

• 4.3 tons pulling capacity
• Especially compact design
• Ideal for limited installation space
• Suitable for trailers, rear winch systems and tow vehicles
• Motor sealed to IP67
• Freespool lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing for motor and gearbox
• Internal drum brake with three brake shoes
• Removable control unit for flexible positioning
• Reinforced, powder-coated control box housing made of deep-drawn sheet metal
• Upgradeable with wireless remote control

Scope of delivery

• Winch
• Aluminum rope window
• Fastening screws
• Synthetic rope with hook
• Corded remote control
• Operating instructions

Important note: The winch is intended exclusively for ground pulling and is not suitable for lifting loads. Depending on the application, a suitable carrier or mounting kit is required for installation.
