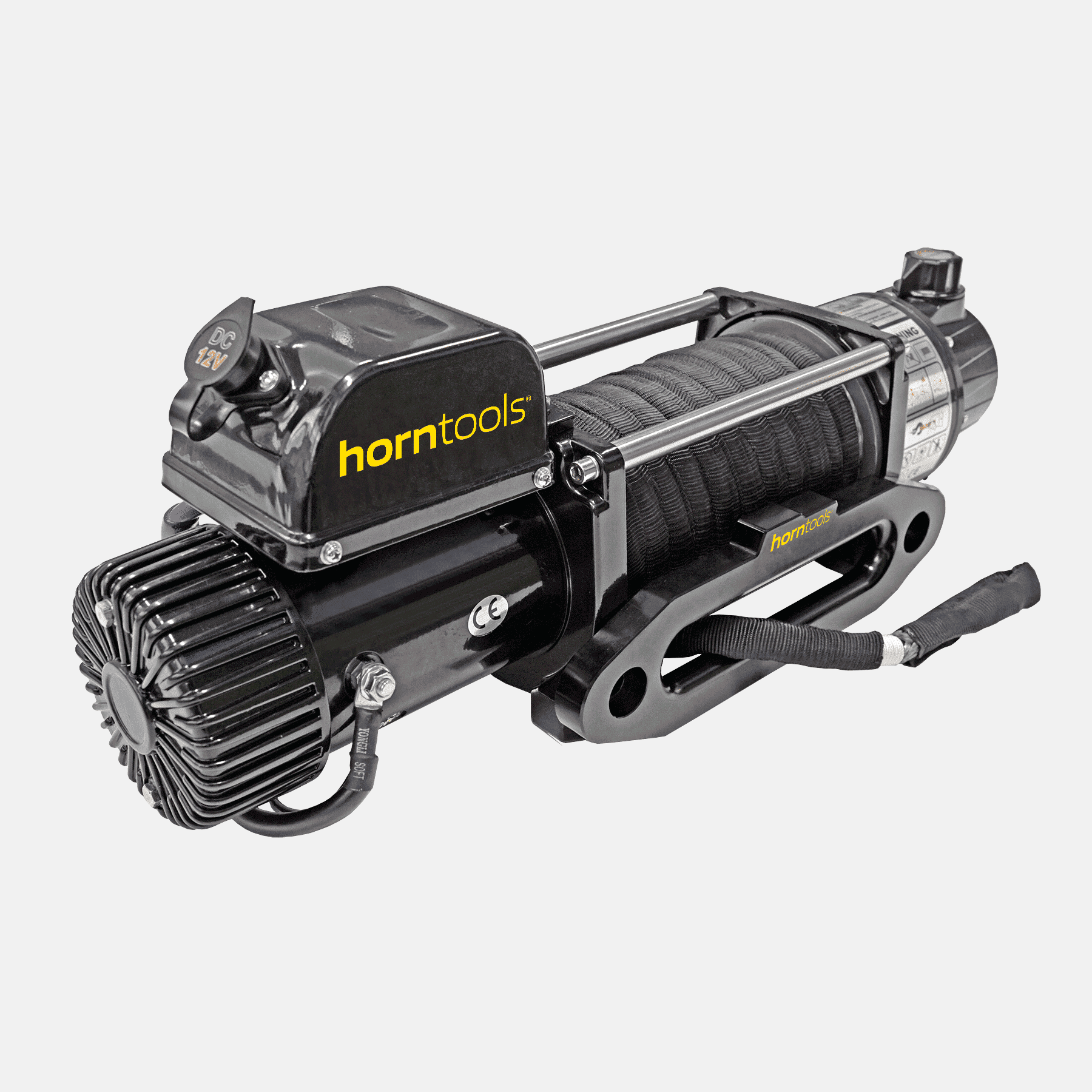

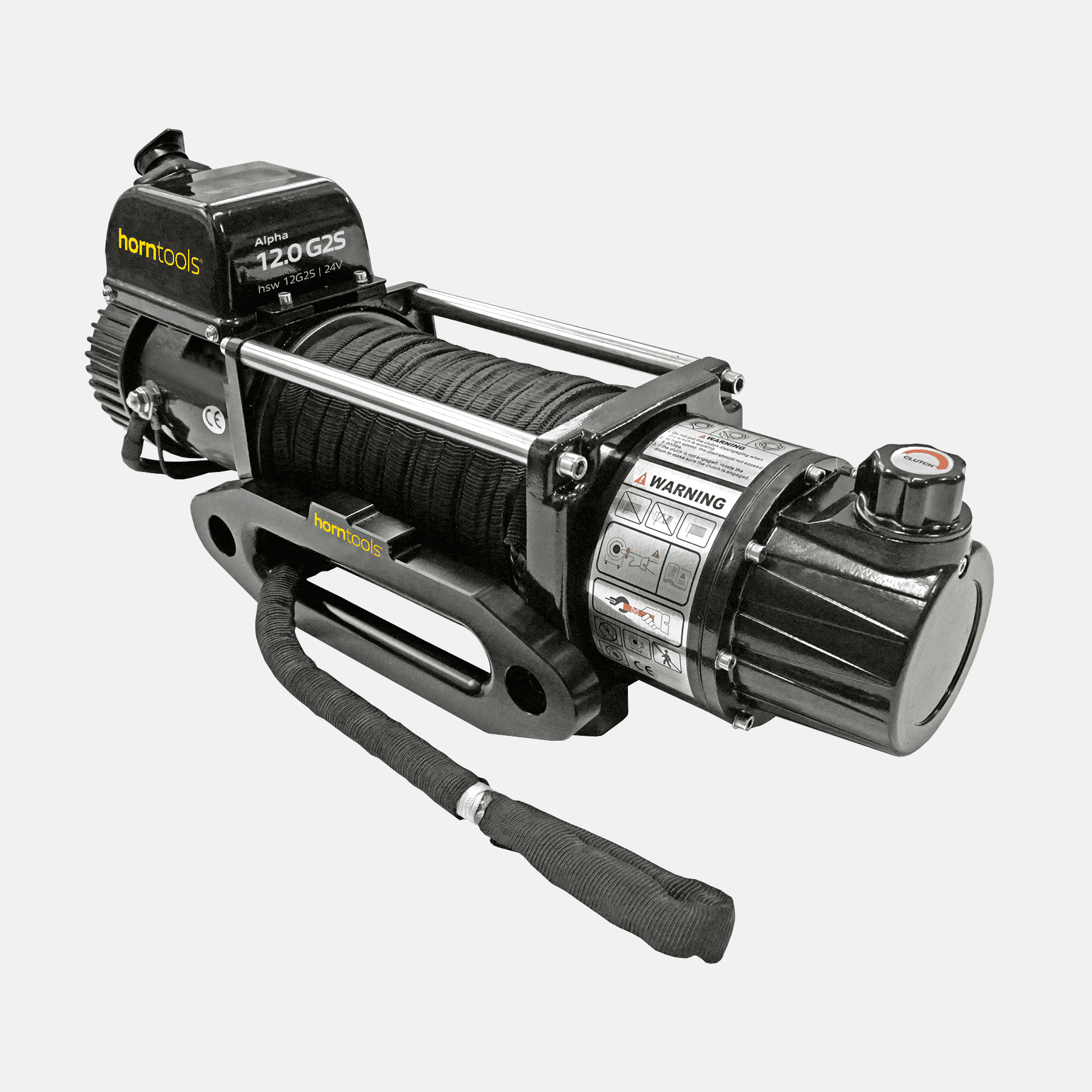

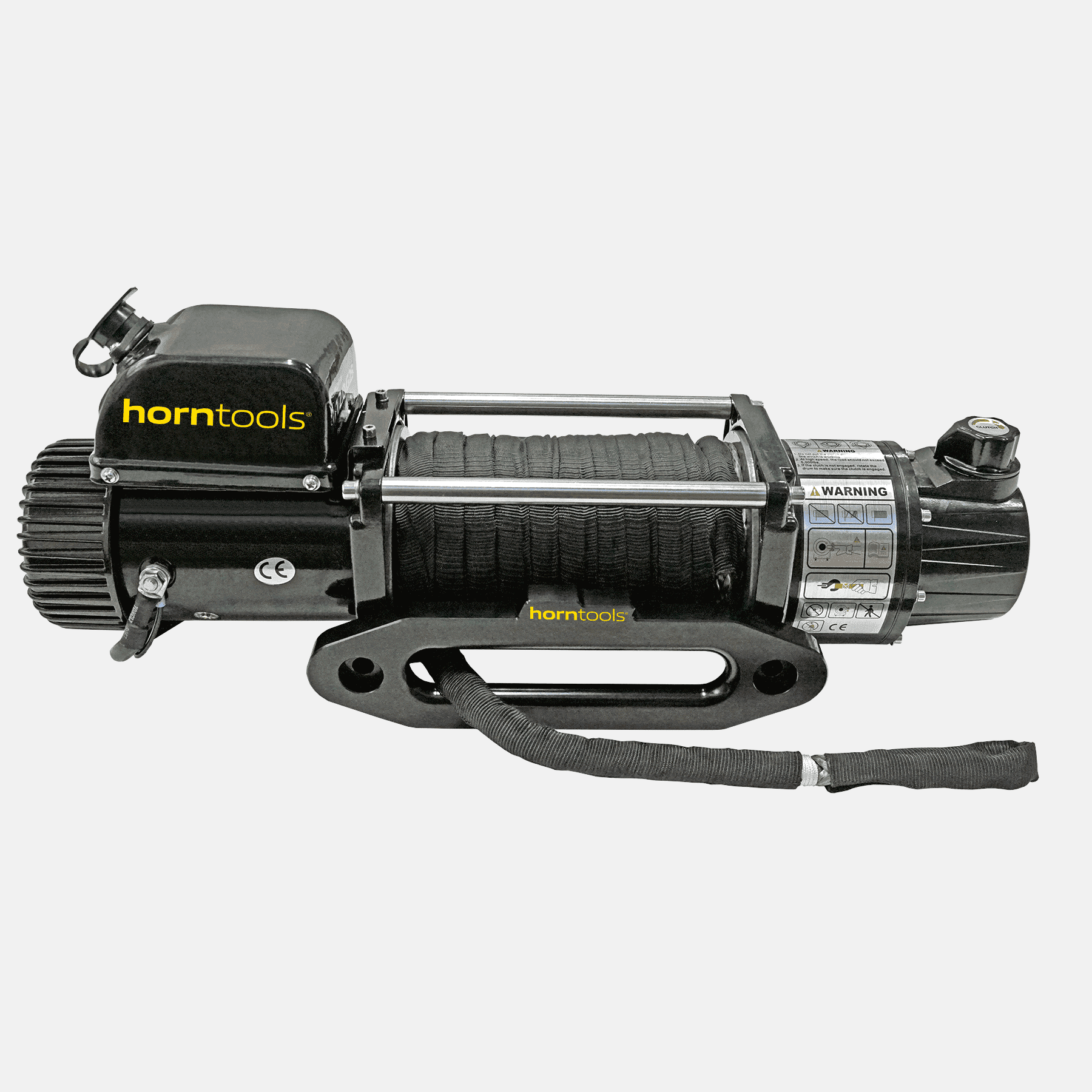

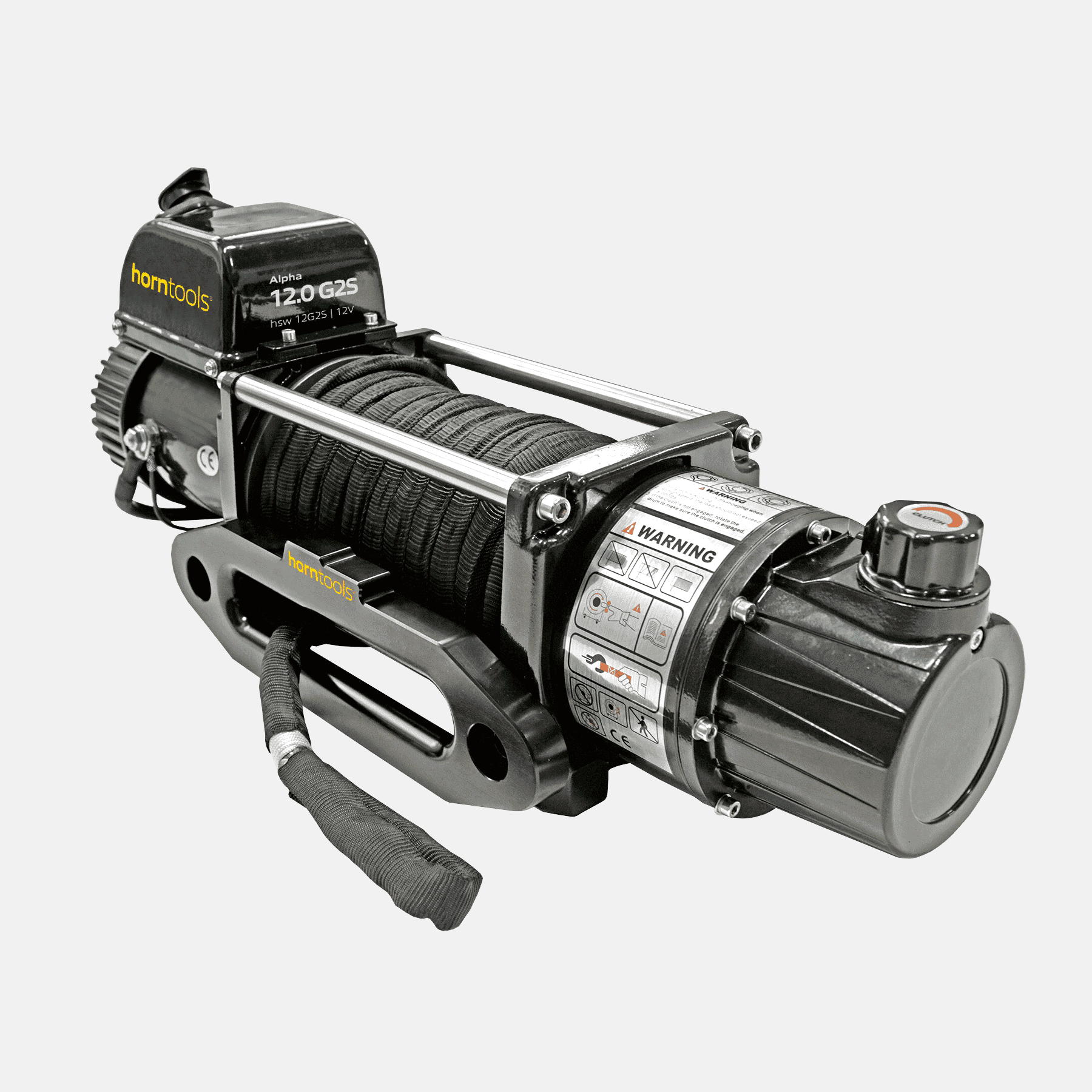

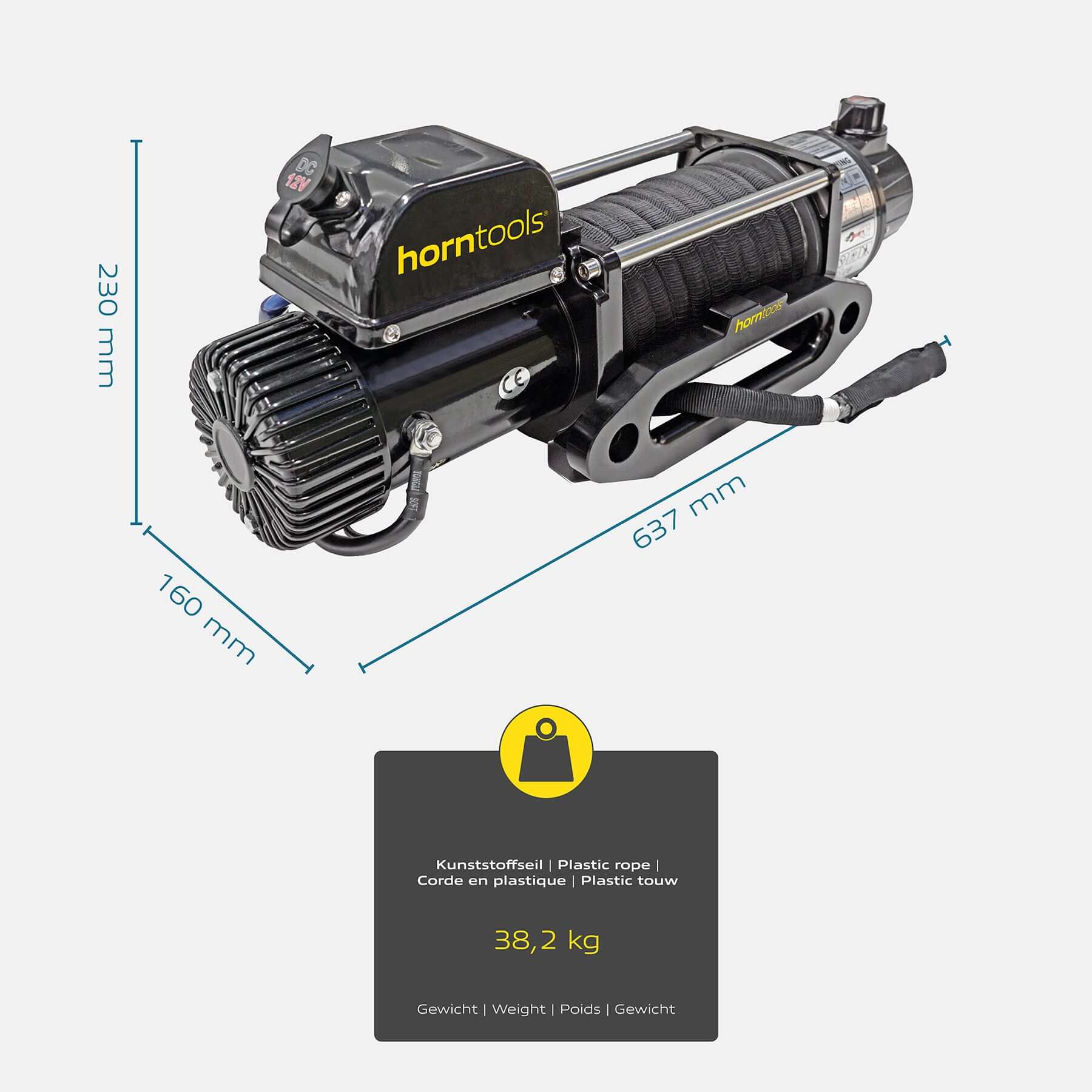

Electric Winch AlphaG 5.4 tons 2-Speed with Drum Brake

The horntools AlphaG 12.0 combines 5.4 tons of pulling capacity with a 2-speed gearbox, making it designed for demanding off-road, recovery and work applications. In first gear, the full pulling capacity is available, while second gear enables a particularly fast rope retrieval. This lets you choose between high pulling power and high speed depending on the situation.

12V winch with 2-speed gearbox

The special feature of the AlphaG 12.0 is its mechanical 2-speed gearbox. In the slow gear, the winch delivers its maximum pulling capacity of up to 5.4 tons. The high-speed gear, on the other hand, is designed for particularly fast rope retrieval and reaches up to 41 m/min without load.

This makes the AlphaG particularly suitable for applications where not only high pulling capacity but also fast working is required.

Versatile applications

The AlphaG 12.0 is designed primarily for demanding applications involving larger off-road vehicles, pick-ups and other off-road vehicles.

Typical areas of use are:

• Self-recovery of off-road vehicles and pick-ups
• Recovery in demanding terrain
• Off-road and overlanding operations
• Use as a front winch
• Mounting on suitable off-road bumpers
• Pulling and recovering vehicles
• Vehicle and material loading
• Work and recovery operations where fast rope retrieval is an advantage

High pulling capacity or fast rope retrieval

With the 2-speed gearbox, you can adapt the AlphaG to the respective task. In the slow gear, up to 5.4 tons of pulling capacity are available. In the fast gear, the focus is on speed: here the winch reaches up to 41 m/min without load, at a maximum pulling capacity of 2.2 tons.

Especially in operations where longer sections of rope need to be reeled in quickly, the AlphaG plays out one of its greatest advantages.

The IP67-sealed motor, stainless steel crossbars and reinforced rope drum ensure a robust design. The internal drum brake with three brake shoes supports controlled operation.

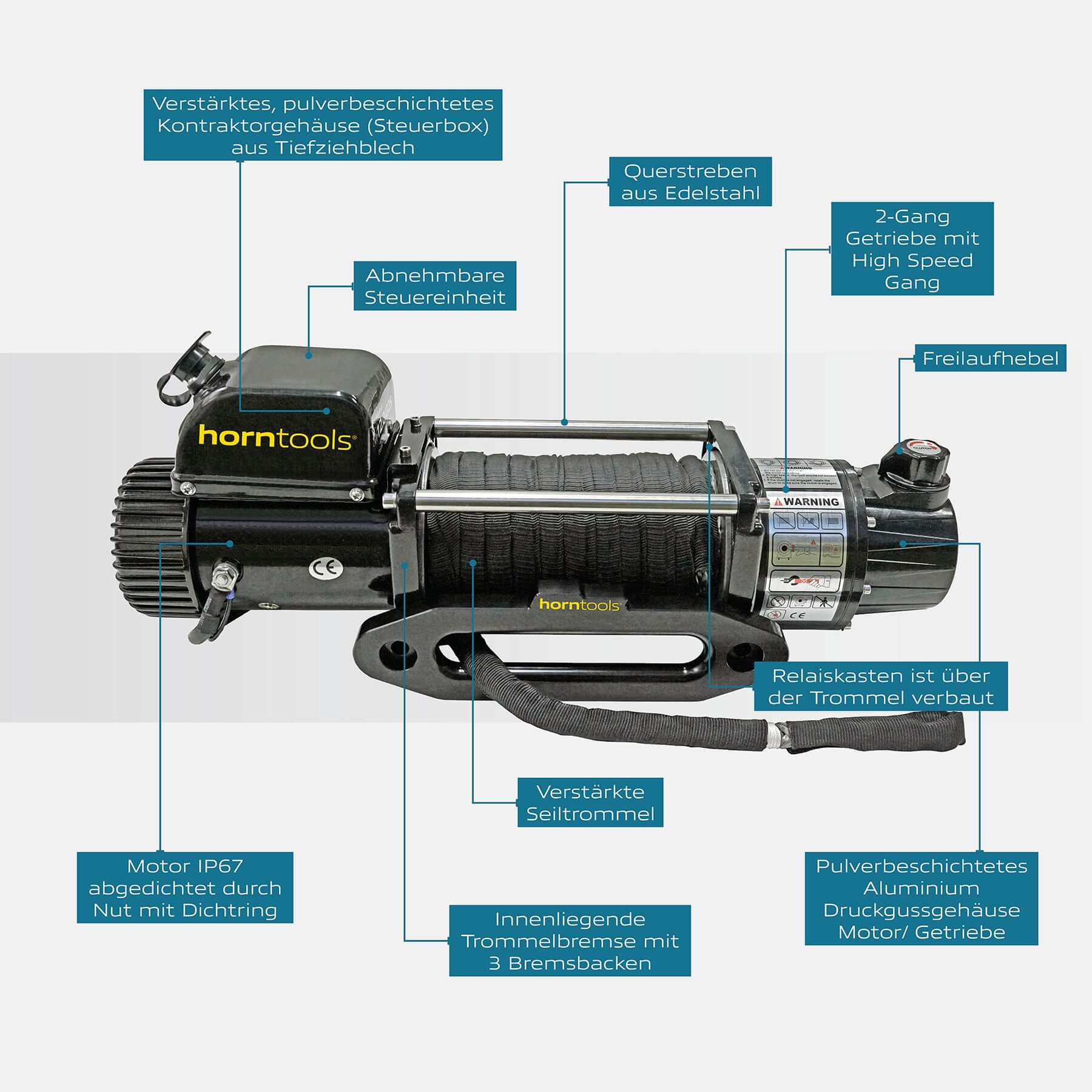

Features

• 5.4 tons maximum pulling capacity
• 12V version
• 2-speed gearbox with high-speed gear

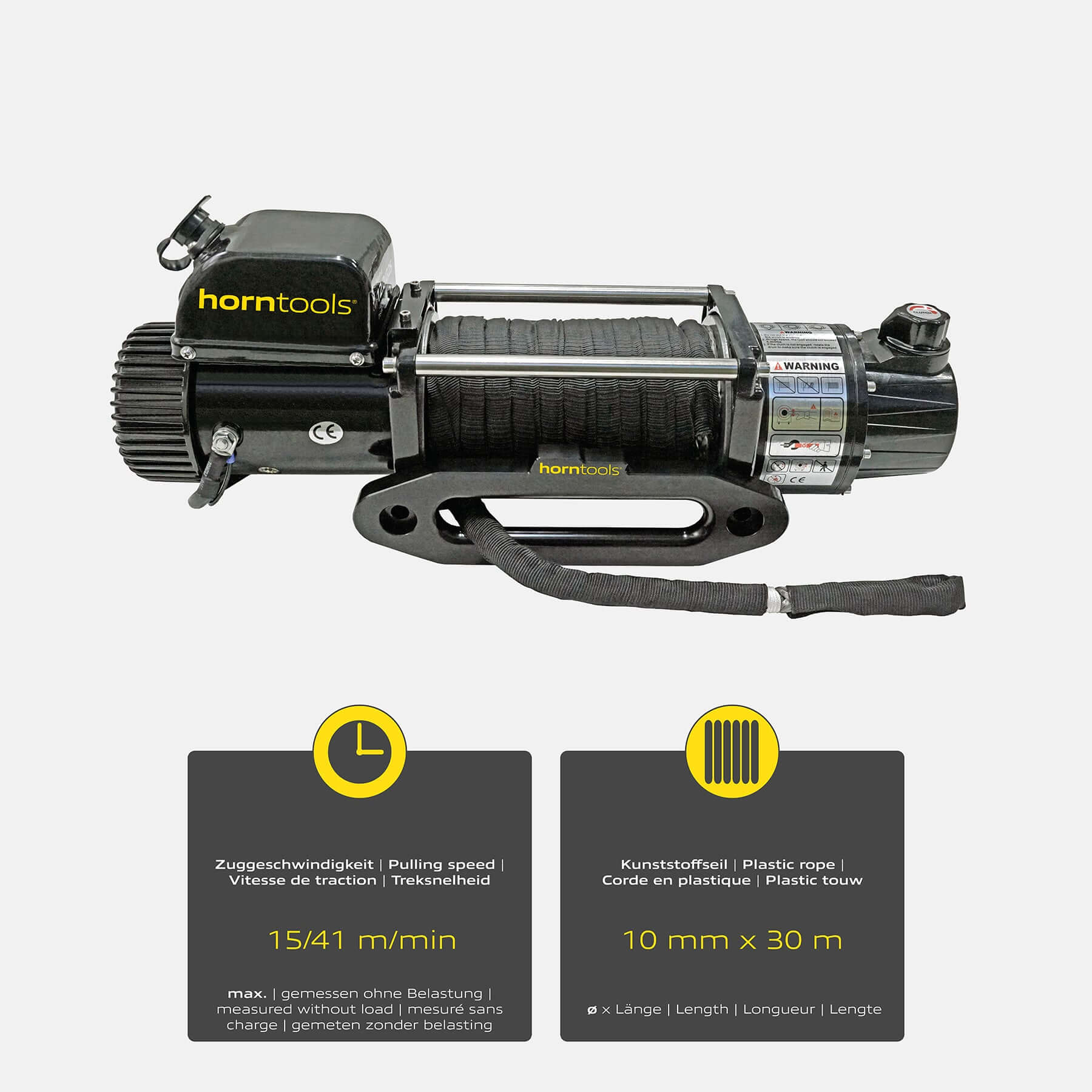

• Up to 41 m/min rope speed in the fast gear*
• Up to 15 m/min rope speed in the slow gear*
• Max. pulling capacity slow/fast: 5,400 kg / 2,200 kg
• Ideal for off-road and recovery operations
• Relay box above the drum
• Motor sealed to IP67
• Freespool lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing for motor and gearbox
• Internal drum brake with three brake shoes
• Removable control unit for flexible positioning
• Reinforced, powder-coated control box housing made of deep-drawn sheet metal
• Controllable with wireless remote control

* Maximum rope speed without load.

Scope of delivery

• Winch
• Wireless remote control

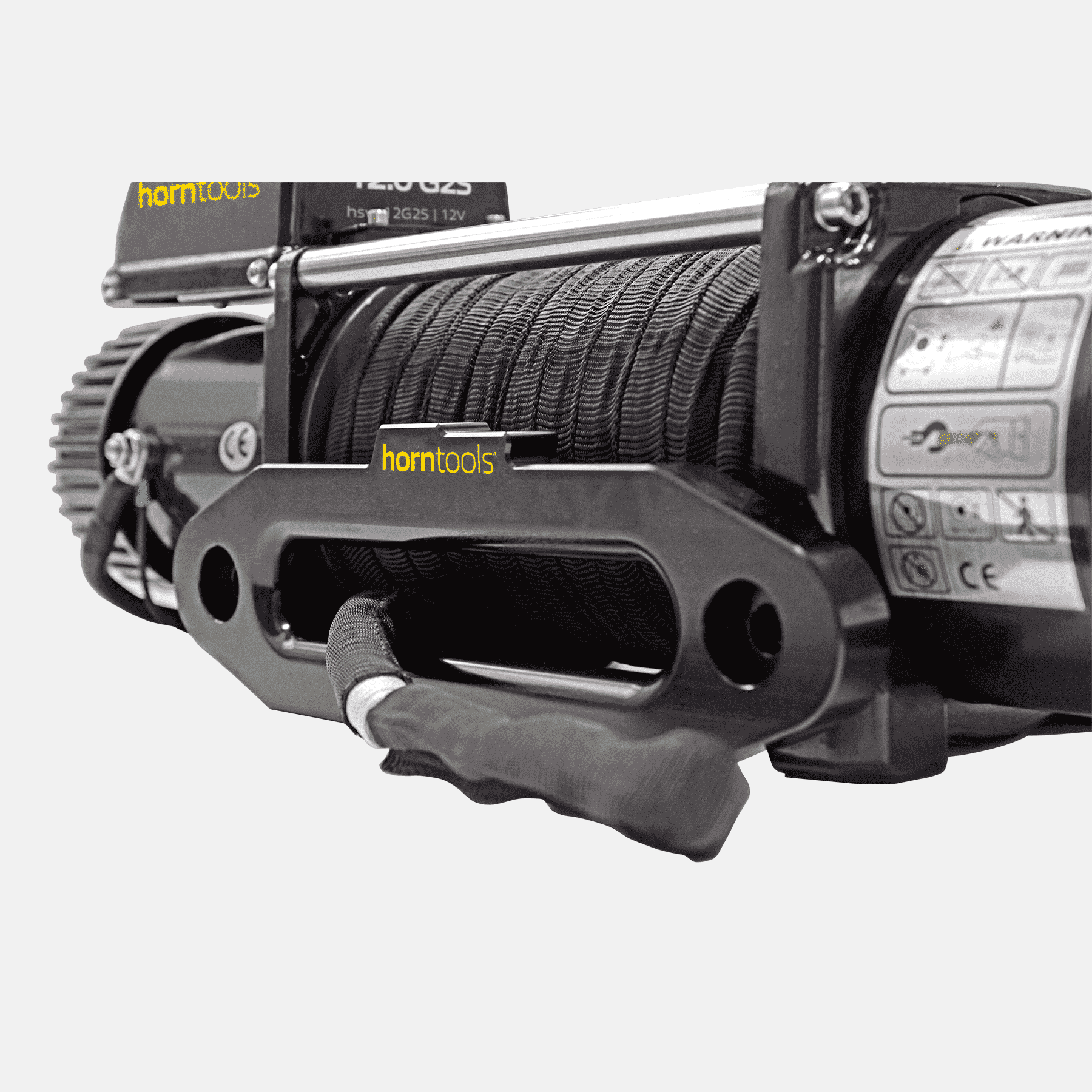

• Aluminum cable window for synthetic rope or roller cable window for steel cable
• Fastening screws
• Synthetic rope with hook or steel cable with hook
• Corded remote control
• Operating instructions

Important note: The winch is intended exclusively for ground pulling and is not suitable for lifting loads.
